XP시리즈
XP시리즈

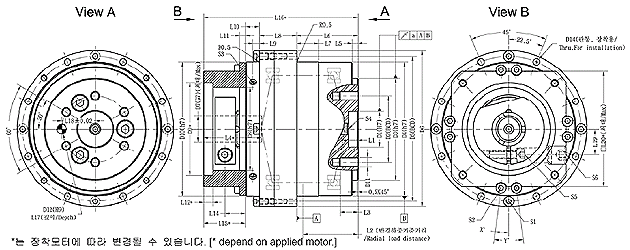

XP (1단 C2 입력형상) 치수표 [XP (1 stage C2 input style) Dimensions] (mm)
구분
XP07A
XP015
XP045
XP090
1단(1St.)
2단(2St.)
1단(1St.)
2단(2St.)
1단(1St.)
2단(2St.)
1단(1St.)
2단(2St.)
a
0.03
0.03
0.03
0.03
D1 (h7)
12
19
28
40
D2
28
36
60
80
D3 (h7)
42
55
75
105
D4 (h7)
57
72
100
130
D5 (B.C.D)
63
78
109
140
D6
69
84
118
150
D7 (G7)
11[14]
14
19[22]
24[28]
D8 (h7)
44(H7)
45
63
90
D9 *
30.2[50.2]
50.2
70.2[80.2]
110.2[110.2]
D10 (h7)
56
72
100
130
D11
6XM4
6XM5
6XM6
6XM8
D12 (H9)
4
5
6
8
D14
8X3.5
8X3.5
8X4.5
8X5.5
L1
5
5
8
7
L2
24.75
29.5
37
45.25
L3
7
9
11
15
L4 *
28[30]
30
40[58]
58[58]
L5
3
3
3.5
3.5
L6
29
33
40.5
52.5
L7
12
12
17
21
L8
15.5
20
28
37
L9
-
3.5
4.5
4
L10
7
7.5
9
8
L11
(-)4
3
3
3
L12 *
4[5]
5
9[11]
9.5[9.5]
L14
7
11
11.5
17
L15 *
17.5[18.5]
22.5
29.5[46.5]
36.5[36.5]
L16 *
69[70]
83
107[124]
134[134]
L17
4
5
6
8
L18 ±0.02
14
18
30
40
L19
11[12]
14
19[19]
21[21]
L20 *
40[60]
60
85[90]
122[120]
S1
4XM3
4XM3
4XM4
4XM5
S2
8XM2.5 (B.C.D50)
8XM3 (B.C.D64)
8XM4 (B.C.D90)
12XM4 (B.C.D101)
S3 (Set screw)
-
2XM4
2XM4
2XM4
S4 (Set screw)
M6
M6
M6
M8
S5
M4
M5
M6
M8
S6 (Set screw)
M6 [M8]
M10
M12
M14
X ˚
7.5 ˚
7.5 ˚
10 ˚
0 ˚
Y ˚
15 ˚
15 ˚
20 ˚
30 ˚(등각/Isometric)
